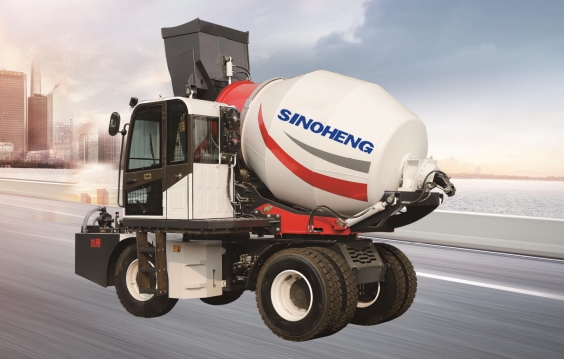

SHC 3.5R Self Propelled Concrete Mixer
The SHC 3.5R Self-Propelled Concrete Mixer is built for efficiency, durability, and ease of operation on demanding construction sites. Powered by a YCD4J22G diesel engine with 116 HP and 390 Nm torque, it delivers stable performance and smooth power output. The 4×4 full-time drive and torque converter gearbox ensure strong traction and mobility on rough terrain. Its 3.5 m³ drum features a double-spiral design for fast, uniform mixing, while the piston hydraulic system and aluminum heat exchanger guarantee reliable operation. Equipped with a self-suction water pump and a high-pressure car wash pump, it simplifies daily maintenance.
| Parameter Description | |
| Diesel engines | |
| Model | YCD4J22G |
| Maximum power | 85Kw(116Hp) |
| Maximum torque | 390Nm@2800rev/min |
| Electrical System | |
| Generator | 28V-1500Wa(53.5A) |
| Battery | 2*12V-60AH(272A) |
| Road lighting system | |
| 4*4 four-wheel drive | |
| Full-time four driving force 0-36km/h | |
| Torque converter gearbox, | |
| Open hydraulic gear oil pump. | |
| Axles and tires | |
| Aggravated special bridge, the planetary reduction gear, the flanged gear box | |
| Rear axle, swing(±28°), and swinging frame on the bridge. | |
| Tires | 16-70-20PR |
| Maximum loads | 5150kg, 450kPa |
| Brake | |
| The device uses a butterfly service brake and an emergency brake to act on four wheels and uses a separate double parking brake. | |
| Maintenance amount | |
| Fuel tank | 128liters |
| Total hydraulic system capacity | 100liters |
| Engine oil | 20liters |
| Operating Cab | |
| The enclosed operating room is available with a heated/cold system and a tilted front window. | |
| Humanize seat with flexible suspension and height adjustment. | |
| High preaaure car wash pump | |
| Equip a high pressure car wash pump | |
| Stirring and unloading | |
| The double cone Drum has a double spiral agitating screw and a convex bottom | |
| Drum geometry | 4650L |
| Drum rotation speed | 16 rpm |
| Concrete production | 3.3-3.5 cubic meters / Drum |
| Steering | |
| Articulated steering | |
| Equipment hydraulic system | |
| Piston type hydraulic motor | |
| Aluminum heat exchanger for cooling hydraulic oil | |
| Open oil inlet,hydraulic oil filter can be replaced externally | |
| Water supply system | |
| "Self-suction" 24V large capacity pump with quick suction function. | |
| Weight | |
| Operating weight | 7500kg |
| Maximum total weight | 14700kg |
| Maximum load capacity | 7200kg |
Q:How to transport the truck?
A:We mainly transport it by ro-ro ship or bulk ship.
Q:I want to transport the truck by container, is it ok?
A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:What is the payment term?
A:Now the payment term we can accept is by T/T or L/C.
Q:Can you provide after-sale service?
A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
