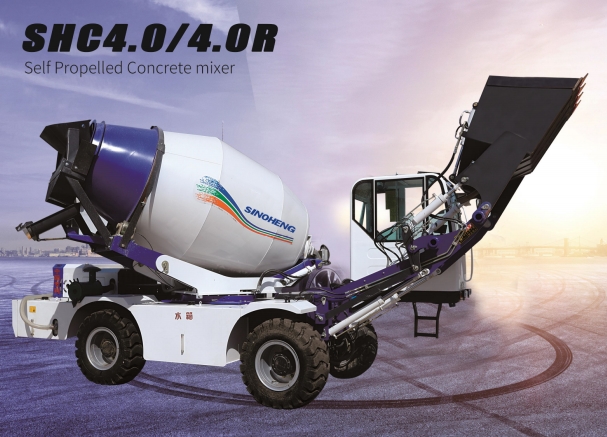

SHC 4.0/4.0R Self Propelled Concrete Mixer
The SH 4.0/4.0R Self-Propelled Concrete Mixer is built for high-capacity, heavy-duty concrete production. Powered by a YCD4J22G diesel engine (up to 129HP) and equipped with a torque converter gearbox, it delivers strong torque and reliable performance on any terrain. Its 6100L double-cone drum produces up to 4.0 cubic meters of concrete per batch, ensuring efficient output for large projects. The mixer features a reinforced full-frame structure, dual rear spring suspension, and 4x4 articulated steering for excellent stability and control. With a 135L fuel tank, 240L hydraulic system, and comfortable enclosed cab, it offers durability, comfort, and productivity in every operation.
| Parameter Description | |
| Diesel engines | |
| Model | YCD4J22G |
| Maximum power | 85/95Kw(116/129Hp) |
| Maximum torque | 440Nm@2800rev/min |
| Electrical System | |
| Generator | 28V-1500Wa(53.5A) |
| Battery | 2*12V-80AH(343A) |
| Road lighting system | |
| 4*4 four-wheel drive | |
| Full-time four driving force 0-36km/h | |
| Torque converter gearbox, | |
| Open hydraulic gear oil pump. | |
| Axles and tires | |
| Aggravated special bridge, the planetary reduction gear, the flanged gear box | |
| Rear axle, swing(±28°), and swinging frame on the bridge.Whole car is full frame,rear wheel double spring shock plate | |
| Tires | 16-70-20PR |
| Maximum loads | 5150kg, 450kPa |
| Brake | |
| The device uses a butterfly service brake and an emergency brake to act on four wheels and uses a separate double parking brake. | |
| Equipment hydraulic system | |
| Aluminum heat exchanger for cooling hydraulic oil | |
| Open oil inlet,hydraulic oil filter can be replaced externally | |
| Maintenance amount | |
| Fuel tank | 135liters |
| Hydraulic system total capacity | 240liters |
| Engine oil | 16liters |
| Operating Cab | |
| The enclosed operating room is available with a heating/cooling system and a tilted front window. | |
| Humanize seat with flexible suspension and height adjustment. | |
| Stirring and unloading | |
| The double cone Drum has a double spiral agitating screw and a convex bottom | |
| Drum geometry | 6100L |
| Drum rotation speed | 15 rpm |
| Concrete production | 4.0 cubic meters / Drum |
| Steering | |
| Articulated steering | |
| Water supply system | |
| "Self-suction" 24V large capacity pump with quick suction function. | |
| Quantitative water supply controller, the mixing is more uniform and more comfortable with the standard | |
| Weight | |
| Operating weight | 8800kg |
| Maximum total weight | 18400kg |
| Maximum load capacity | 9600kg |
Q:How to transport the truck?
A:We mainly transport it by ro-ro ship or bulk ship.
Q:I want to transport the truck by container, is it ok?
A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:What is the payment term?
A:Now the payment term we can accept is by T/T or L/C.
Q:Can you provide after-sale service?
A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
