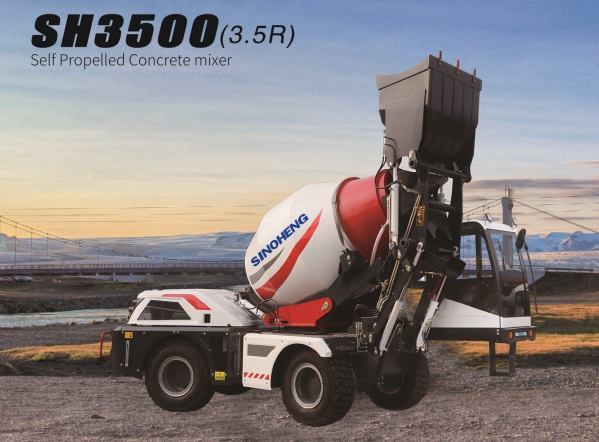

SH 3500 Self Propelled Concrete Mixer
The SH 3500 Self-Propelled Concrete Mixer is designed for higher efficiency and durability in heavy-duty concrete production. It features a larger 5150L mixing drum, offering a higher output of up to 3.5 cubic meters per batch. Its reinforced chassis and 8500kg operating weight provide superior stability on rough terrain. The YCD4J22G 116HP diesel engine and advanced piston-type hydraulic system deliver powerful, consistent performance. Equipped with a 128L fuel tank, enhanced cooling system, and high-pressure cleaning pump, the SH 3500 ensures longer working hours, easy maintenance, and outstanding reliability for large-scale construction projects.
| Parameter Description | |
| Diesel engines | |
| Model | YCD4J22G |
| Maximum power | 85Kw(116Hp) |
| Maximum torque | 390Nm@2800rev/min |
| Electrical System | |
| Generator | 28V-1500Wa(53.5A) |
| Battery | 2*12V-60AH(272A) |
| Road lighting system | |
| 4*4 four-wheel drive | |
| Full-time four driving force 0-36km/h | |
| Torque converter gearbox, | |
| Open hydraulic gear oil pump. | |
| Axles and tires | |
| Aggravated special bridge, the planetary reduction gear, the flanged gear box | |
| Rear axle, swing(±28°), and swinging frame on the bridge. | |
| Tires | 16-70-20PR |
| Maximum loads | 5150kg, 450kPa |
| Brake | |
| The device uses a butterfly service brake and an emergency brake to act on four wheels and uses a separate double parking brake. | |
| Maintenance amount | |
| Fuel tank | 128liters |
| Total hydraulic system capacity | 100liters |
| Engine oil | 20liters |
| Operating Cab | |
| The enclosed operating room is available with a heated/cold system and a tilted front window. | |
| Humanize seat with flexible suspension and height adjustment. | |
| High preaaure car wash pump | |
| Equip a high pressure car wash pump | |
| Stirring and unloading | |
| The double cone Drum has a double spiral agitating screw and a convex bottom | |
| Drum geometry | 5150L |
| Drum rotation speed | 16 rpm |
| Concrete production | 3.3-3.5 cubic meters / Drum |
| Steering | |
| Articulated steering | |
| Equipment hydraulic system | |
| Piston type hydraulic motor | |
| Aluminum heat exchanger for cooling hydraulic oil | |
| Open oil inlet,hydraulic oil filter can be replaced externally | |
| Water supply system | |
| "Self-suction" 24V large capacity pump with quick suction function. | |
| Weight | |
| Operating weight | 8500kg |
| Maximum total weight | 16900kg |
| Maximum load capacity | 8400kg |
