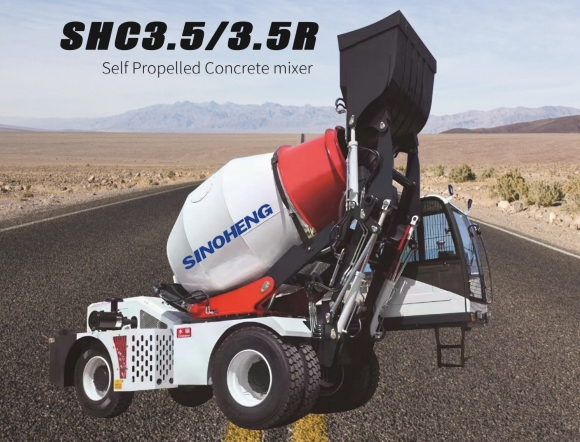

SHC 3.5 Self Propelled Concrete Mixer
The SHC 3.5 Self-Propelled Concrete Mixer equipped with a YCD4J22G diesel engine producing 116 HP and 390 Nm torque, it offers strong driving force and reliable operation. The 4×4 full-time drive with a torque converter gearbox ensures smooth mobility across all terrains. Its 3.5 m³ drum with a double-spiral design guarantees fast and even mixing. A Delong hydraulic system, self-suction water pump, and aluminum oil cooler enhance durability and precision. With a comfortable, air-conditioned cab and ergonomic controls, the SHC 3.5 provides both productivity and operator comfort on every job site.
| Parameter Description | |
| Diesel engines | |
| Model | YCD4J22G |
| Maximum power | 85Kw(116Hp) |
| Maximum torque | 390Nm@2800rev/min |
| Electrical System | |
| Generator | 28V-1500Wa(53.5A) |
| Battery | 2*12V-60AH(272A) |
| Road lighting system | |
| 4*4 four-wheel drive | |
| Full-time four driving force 0-36km/h | |
| Torque converter gearbox, | |
| Open hydraulic gear oil pump. | |
| Shaft and tire | |
| Aggravated special bridge, the planetary reduction gear, the flanged gear box | |
| Rear axle, swing(±28°), and swinging frame on the bridge. | |
| Tires | 16-70-20PR |
| Maximum loads | 5150kg, 450kPa |
| Brake | |
| The device uses a butterfly service brake and an emergency brake to act on four wheels and uses a separate double parking brake. | |
| Equipment hydraulic system | |
| Gear pump | Brand"Delong" |
| Aluminum heat exchanger is used for cooling hydrailic oil. | |
| Open oil inlet,hydraulic oil filter can be replaced externally. | |
| Stirring and unloading | |
| The double cone Drum has a double spiral agitating screw and a convex bottom. | |
| Drum geometry | 5150L |
| Drum rotation speed | 16 rpm |
| Concrete production | 3.3-3.5 cubic meters/Drum |
| Steering | |
| Articulated steering | |
| Water supply system | |
| "Self-suction" 24V large capacity pump with quick suction function. | |
| Quantitative water supply cointroller, the mixing is more uniform and more in line with the standard. | |
| Operating Cab | |
| The enclosed operating room is available with a heated/cold system and a tilted front window. | |
| Humanize seat with flexible suspension and height adjustment. | |
| Maintenance amount | |
| Fuel tank | 120liters |
| Total hydraulic system capacity | 100liters |
| Engine oil | 20liters |
| Weight | |
| Operating weight | 7800kg |
| Maximum total weight | 16200kg |
| Maximum load capacity | 8400kg |
Q:How to transport the truck?
A:We mainly transport it by ro-ro ship or bulk ship.
Q:I want to transport the truck by container, is it ok?
A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:What is the payment term?
A:Now the payment term we can accept is by T/T or L/C.
Q:Can you provide after-sale service?
A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
