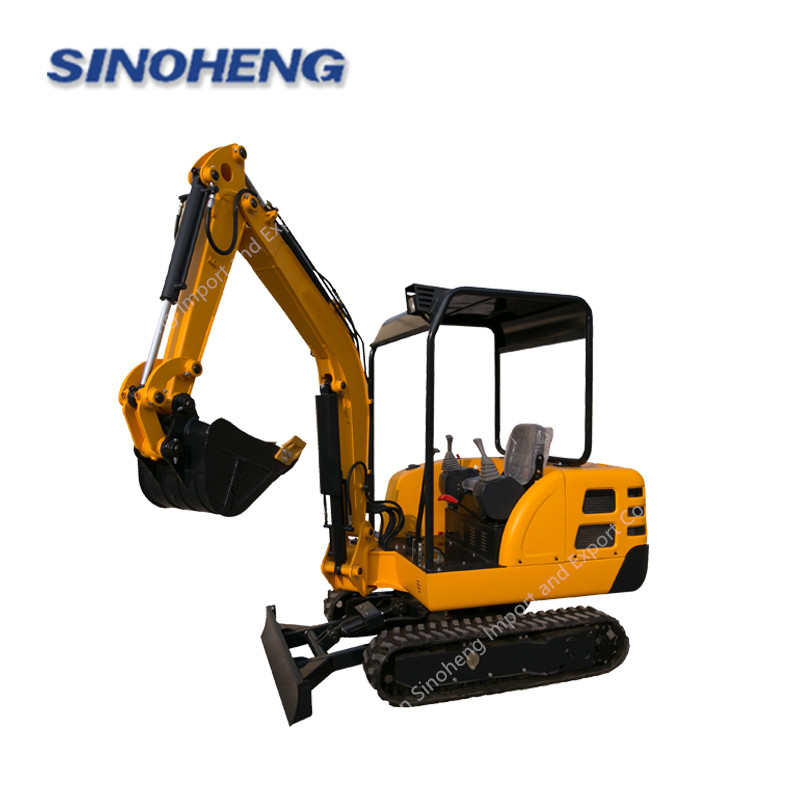

SH18 CRAWLER EXCAVATOR

SH18 CRAWLER EXCAVATOR

Short Description:

The crawler excavator is a compact excavator ,which matched china famous brand engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted international brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with broken pipeline system , adopted the hydraulic pilot servo operation system , the machine can changed track from rubber to steel and...


Product Detail

FAQ

Product Tags

The crawler excavator is a compact excavator ,which matched china famous brand engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted international brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with broken pipeline system , adopted the hydraulic pilot servo operation system , the machine can changed track from rubber to steel and cabin from open to closed.ensure it can work in different working environments and conditions.
Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.

ENGINE

Emission Standard

Tier 3/ Stage III

Make

LAIDONG

Model

3TE25

Power /Rotation speed

18.4kw(25HP)@2350rpm

Number of cylinder

3

TRACK SYSTEM

Maximum Travel speed

3.5km/h

Width of track shoe(Rubber & steel track)

230mm

Number of track shoe per side(Steel track only)

38 pcs

Number of upper roller per side

0

Number of bottom roller per side

4

PERFORMANCE PARAMETER

Standard bucket capacity

0.06m³

Swing speed

12 rpm

Max. Grade ability

35°

Max. Bucket digging force

14KN

Max. Arm digging force

10KN

Hydraulic system pressure

16Mpa

Machine weight

1800kg

MACHINE SIZE

Overall dimension (L*W*H)

3865mm*1050mm*2270mm

Axle base(Track length on ground)

1230mm

Track gauge

820mm

Min.Ground clearance

210mm

Swing radius at tail

1125mm

WORKING RANGE

Max. Digging height

3365mm

Max. Dumping height

2385mm

Max. Digging depth

2050mm

Max. Vertical digging depth

1955mm

Max. Digging radius

3860mm

Min .swing radius

1720mm

Max. Lifting height of blade

230mm

Max. Cutting depth of blade

275mm

Boom swing angle(Left)

75°

Boom swing angle(Right)

45°

If you have more question about our product, Please write to me.Good quality, low price, Excellent service.Looking forward to your any inquiry!!


  • Previous:
  • Next:

  • Q:How to transport the truck?
    A:We mainly transport it by ro-ro ship or bulk ship.
    Q:I want to transport the truck by container, is it ok?
    A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
    Q:How about your product quality?
    A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.

    Q:What is the payment term?

    A:Now the payment term we can accept is by T/T or L/C.

    Q:Can you provide after-sale service?

    A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
