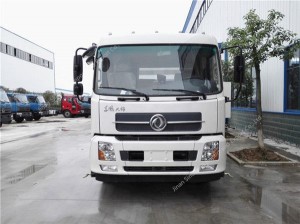

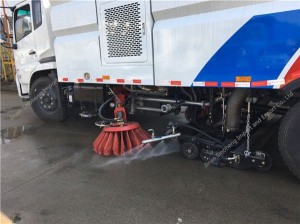

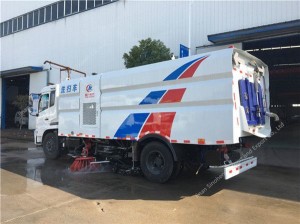

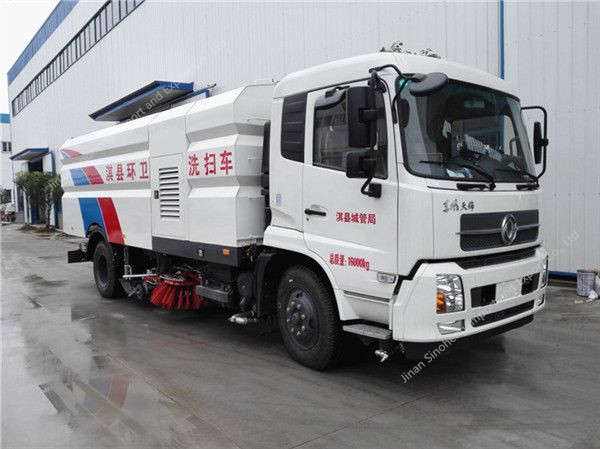

Dongfeng Tianjin washing sweeper truck

Dongfeng Tianjin washing sweeper truck

Short Description:

Road sweeper truck is a new kind of efficient cleaning equipment integrating road cleaning, garbage collection and transportation. Simple said is change his costume or dress on special automobile chassis road cleaning function of sweeping vehicles, vehicles in addition to the chassis engine, also equipped with a pair of engine, four brush sweep by the hydraulic motor drives the work, with fan, dustbin, tanks and other equipment. The new model can be a complete surface cleaning, the road road ...


Product Detail

FAQ

Product Tags

Road sweeper truck is a new kind of efficient cleaning equipment integrating road cleaning, garbage collection and transportation. Simple said is change his costume or dress on special automobile chassis road cleaning function of sweeping vehicles, vehicles in addition to the chassis engine, also equipped with a pair of engine, four brush sweep by the hydraulic motor drives the work, with fan, dustbin, tanks and other equipment. The new model can be a complete surface cleaning, the road road teeth cleaning, the road road teeth cleaning and cleaning the sprinkling water on the ground after work and so on, is suitable for various climate and dry pavement cleaning job.

Item Parameter
Production name Dongfeng Tianjin washing sweeper   truck
vehicle model CLW5160TXSD5
Engine Engine   model: ISB180 50
Engine manufacturer: Dongfeng Cummins   Engine Co., LTD
Exhaust:   5900ml
Power:   132kw
Emission   standard: Euro V
Chassis model DFL1160BX1V
Tire Tire specification: 9.00R20
Number of tire: 6
Axle Number of axles: 2
Axle-load: 6000/10000
Wheel base(mm): 5000
Traction system 4×2
Tank fact cubage(cbm) 9m3 clean   water tank,7m3 dust tank
GVW(kg) 16000
Curb weight(kg) 11350
Overall dimensions(mm) 8580×2490×3100
F / R track base(mm) 1880/1860
Approach / departure angle(°) 20/12
Max speed(Km/h) 90
Special features 1>      With two mid sweeping brush,Cummins 170 hp deputy engine;   Italian motor; German high-pressure pump (front, side and mid spray,rear spray   (stainless steel nozzles), side water washing gun, trash self-cleaning   device); universal high pressure cleaning along the road, the Veyron low   pressure pump (front spray); stainless steel trash tank; stainless steel   high-pressure line; Germany controller; Japan control switch; American   Sensor; Rear arrow lights; All oil tank, trash tank and water tank with spill   or low alarm device; Indoor monitor when reverse and wash sweeping. 18 m   high-pressure flushing reel.
2>      Sweeping width 3.5 m; cleaning pressure 10MPa; inhaled   size 110mm.
3>      PLC full computer control of a key.
Product cycle 10-15 days
Warranty  12 months, from the date of supply

If you have more question about our product, Please write to me.Good quality, low price, Excellent service.Looking forward to your any inquiry!!


  • Previous:
  • Next:

  • Q:How to transport the truck?
    A:We mainly transport it by ro-ro ship or bulk ship.
    Q:I want to transport the truck by container, is it ok?
    A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
    Q:How about your product quality?
    A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.

    Q:What is the payment term?

    A:Now the payment term we can accept is by T/T or L/C.

    Q:Can you provide after-sale service?

    A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
