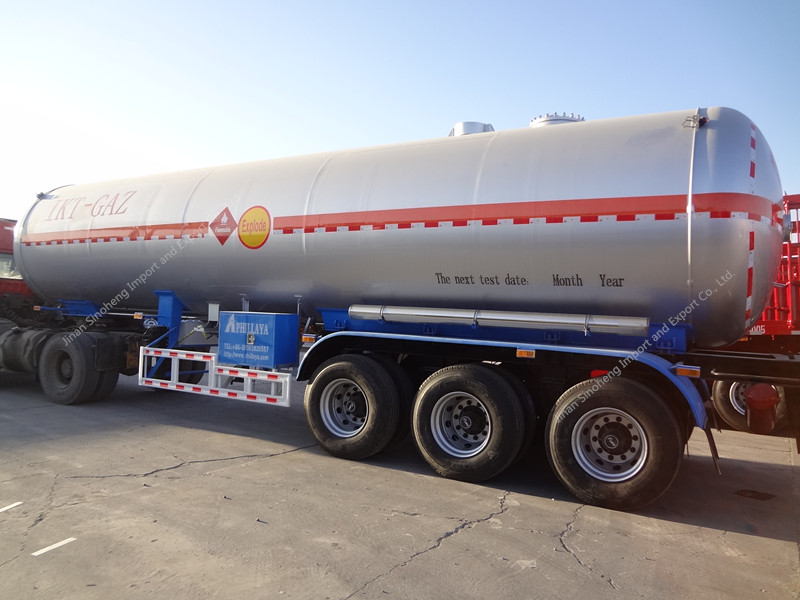

3axles 57.5m3 Propylene Tanker Semi Trailer

3axles 57.5m3 Propylene Tanker Semi Trailer

Short Description:

Semi trailer is 3 axles semi trailers, a kind of heavy traffic transportation tool by the traction pin connects with trailer head together . Semi trailers is mainly using for loading big volumen and not easy to disassemble, for example excavator etc engineering machinery. The cargo semi trailers including tipper semi trailers, stake semi trailers , flatbed semi trailers , container semi trailers etc , tanker semi trailers including oil tanker semi trailers , bulk cement semi trailers etc . Al...


Product Detail

FAQ

Product Tags

Semi trailer is 3 axles semi trailers, a kind of heavy traffic transportation tool by the traction pin connects with trailer head together . Semi trailers is mainly using for loading big volumen and not easy to disassemble, for example excavator etc engineering machinery. The cargo semi trailers including tipper semi trailers, stake semi trailers , flatbed semi trailers , container semi trailers etc , tanker semi trailers including oil tanker semi trailers , bulk cement semi trailers etc . All the kinds of semi trailers ( from light loading semi trailers to heavy loading semi trailers ) , we all can customize them according to customer’s special demands ( required dimensions , loading capacity etc  ) .

Tanker Essential Information
Vehicle modelHCH9403GYQB
1 Dimensions(length*width*height)  13000×2500×4000*13mm
2 Estimated Tare Weight 15275KG
3 Payload  24725KG
4 Total Weight          40000KG
Shell Of Tanker
1 Filling medium    Propylene liquid gas
2 Fluid property  flammable and explosive
4 Design temperature   to 50
5 Design pressure      1.95MPa
6 Corrosion allowance      1.0mm
7 Major materials of bearing pressure  Tanker body : Q345R , 13mm
End plate : Q345R , 8mm
Main Beam : AG700 high-strengthsteel
8 Filling weight per volume
9 Maximum filling weight
10 Compartments       One
11 Baffle inside the tank   7-washboard,Q235A  thickness is 4mm
12 Shape   Cylindrical ; sphere head
Detection
1 Heat treatment  overall heat treatment and eliminate stress in
2 Flaw detection    100% Flaw detection
3 Hydrostatic test   2.54MPa (25.908 Kg/cm2)
4 Magnaflux    Aim at welding place flaw detection can not cover
Manhole (As customer’s requirement )
1 Quantity              1 ; On top
Safety Valve
1 Quantity         One
2 Location     On the top of tanker ;
3 Model           A412F-25-22   DN100
4 Type           Inner full lift
5 Throat diameter   68mm
6 Nominal pressure  2.5Mpa
7 Size            As customer’s  requirement
 8 Opening pressure  2.05Mpa
9 Discharge pressure  2.34Mpa
10 Reseating pressure 0.9 time of opening pressure
11 Design Pressure     1.95 MPA (19.89 Kg/cm2)
Liquidometer (As customer’s requirement )
1 Quantity and Model  1
2 Location         On rear dish end of tanker
3 Type            Rotary Roll tube
4 Indicated altitude   50-2472
5 Precision       2.5 Grade
Emergency cut-off valve
1 Model             QGJ43F-25-7/8
2 Nominal diameter  DN50(Liquid phase);DN25(Gas phase)
3 Nominal pressure  2.5Mpa
4 Operation mode   mechanical type
5 Close time       ≤10S
6 Melting switch temperature             75±5
Running System
1 Axles            3 13 TON FUWA Axles
2 Suspension system   1 Leaf spring suspension
3 Wheel rim        12 9.0*22.5
4 Tyre             12 Brand : double coin 12R TUBELESS
5 Wheelbase(mm)       6830+1310+1310
6 Kingpin          1 3.5″,bolt on ,in rubbing plate
7 Landing legs      2 28T FUWA
Pneumatic Brake System
1 Spring brake chamber 6
2 Air connector     2
3 Relay Valve       1
4 ABS 1
Electronical System
1 7-Pin Socket      1 24V 7-pin socket
2 LED Lamp      1 All kinds of lamp
3 Cable            1 Stander cable
Accessories
1 Small Tool box    1
2 Wheel carrier    1
3 Fire extinguisher   2 8KG With red box
4 Cabinet       1
5 Plastic fender   6
6 Static conductive belt 1
7 Impeller blasting     1 Completely
8 Paint              1 As customer requirements
TERMS
1 Payment terms: 30%TT in advance,the balance should be paid againstthe copy of B/L.Or L/C at sight.(BY T/T or L/C)
2 Terms of delivery: in 30 days after the seller received 30% advance payment (try deliver the goods as soon as possible)
3 PORT:Tianjin or Qingdao or Shanghai
4 MOQ: one unit

If you have more question about our product, Please write to me.Good quality, low price, Excellent service.Looking forward to your any inquiry!!


  • Previous:
  • Next:

  • Q:How to transport the truck?
    A:We mainly transport it by ro-ro ship or bulk ship.
    Q:I want to transport the truck by container, is it ok?
    A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
    Q:How about your product quality?
    A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.

    Q:What is the payment term?

    A:Now the payment term we can accept is by T/T or L/C.

    Q:Can you provide after-sale service?

    A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
