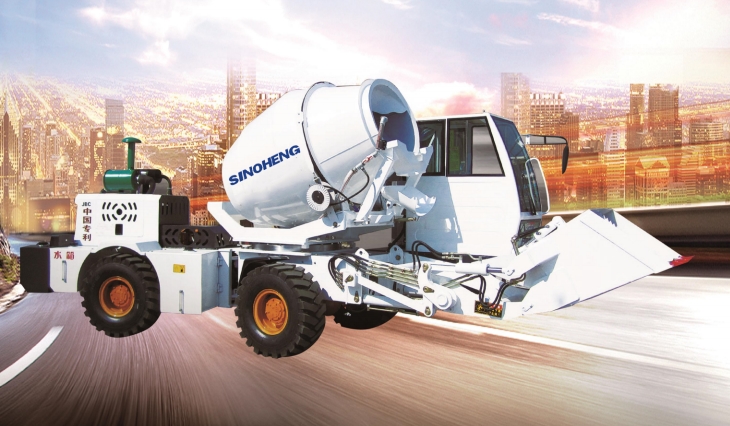

SHC 1.8/1.8R Self Propelled Concrete Mixer
The SHC 1.8/1.8R Self-Propelled Concrete Mixer is built for efficiency, reliability, and mobility on any job site. Powered by a 75 HP Yunnei diesel engine and featuring a 4×4 full-time drive, it delivers strong performance on rough terrain. Its 1.8m³ double-cone drum ensures fast, uniform mixing, while the hydraulic system with a Delong gear pump provides smooth and stable operation. The mixer includes a self-suction water pump, easy-to-use controls, and a comfortable enclosed cab with heating and cooling. Compact yet powerful, the SHC 1.8/1.8R is ideal for small to mid-scale construction projects.
| Parameter Description | |
| Diesel engines | |
| Model | Yunnei YN27GBZ |
| Maximum power | 55Kw(75Hp) |
| Maximum torque | 237Nm@2000rpm |
| Electrical System | |
| Generator | 28V-500Wa(18A) |
| Battery | 2*12V-60AH(272A) |
| Road lighting system | |
| 4*4 four-wheel drive | |
| Full-time four driving force 0-20km/h | |
| Torque converter gearbox, | |
| Open hydraulic gear oil pump. | |
| Axles and tires | |
| Planetary reduction gears are mounted on the bridge and flanged to the gearbox. | |
| Rear axle,swing(±28°),swinging frame on the bridge. | |
| Tires | 12-16.5-12PR |
| Maximum load | 2540kg,450kPa |
| RIM | 9.75 |
| Brake | |
| The device uses a butterfly service brake and an emergency brake to act on four wheels and uses a separate double parking brake. | |
| Equipment hydraulic system | |
| Gear pump | Brand"Delong" |
| Aluminum heat exchanger is used for cooling hydrailic oil. | |
| Open oil inlet,hydraulic oil filter can be replaced externally. | |
| Stirring and unloading | |
| The double cone Drum has a double spiral agitating screw and a convex bottom. | |
| Drum geometry | 2600L |
| Drum rotation speed | 15rpm/min |
| Concrete production | 1.8cubic meters/Drum |
| Steering | |
| Articulated steering | |
| Water supply system | |

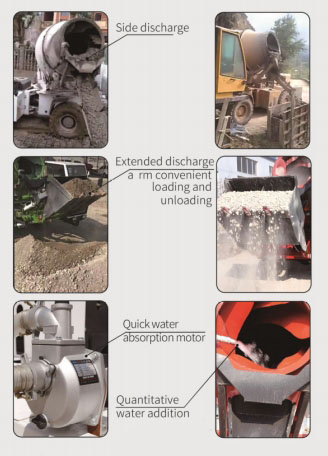

| "Self-suction" 24V large capacity pump with quick suction function. | |
| Quantitative water supply cointroller, the mixing is more uniform and more in line with the standard. | |
| Operating Cab | |
| The enclosed operating room is available with a heated/cold system and a tilted front window. | |
| Humanize seat with flexible suspension and height adjustment. | |
| Maintenance amount | |
| Fuel tank | 100liters |
| Total hydraulic system capacity | 100liters |
| Engine oil | 16liters |
| Weight | |
| Operating weight | 4800kg |
| Maximum total weight | 7680kg |
| Maximum load | 2880kg |
Q:How to transport the truck?
A:We mainly transport it by ro-ro ship or bulk ship.
Q:I want to transport the truck by container, is it ok?
A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:What is the payment term?
A:Now the payment term we can accept is by T/T or L/C.
Q:Can you provide after-sale service?
A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
