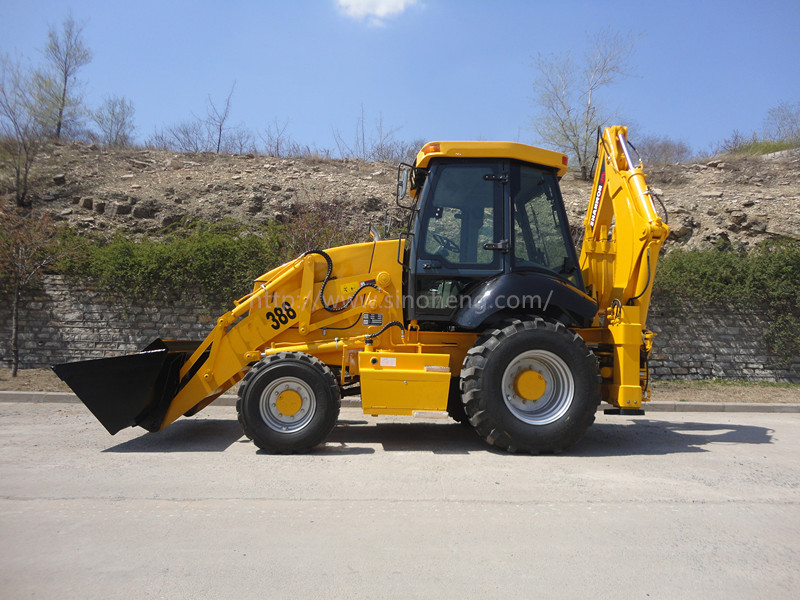

SINOHENG SH388 tractor wheel loader backhoe for tractor

SINOHENG SH388 tractor wheel loader backhoe for tractor

Short Description:

SH388 performance feature: 1.Use a central articulated frame, smaller turning radius, flexible, lateral stability is good, is advantageous for the loading operation in the narrow site. 2.Loading device features refer to the world’s advanced level of the British JCB 3 cx type structure, mining device features refer to John Deere 310 se type structure, beautiful shape, cab USES large area glass, good daylighting sex and vision, the driver operation more comfortable. 3.With the gas cap oil...


Product Detail

FAQ

Product Tags

SH388 performance feature:

1.Use a central articulated frame, smaller turning radius, flexible, lateral stability is good, is advantageous for the loading operation in the narrow site.

2.Loading device features refer to the world’s advanced level of the British JCB 3 cx type structure, mining device features refer to John Deere 310 se type structure, beautiful shape, cab USES large area glass, good daylighting sex and vision, the driver operation more comfortable.

3.With the gas cap oil pliers disc type foot brake system and external beam hand drum brakes, brake safe and reliable.

4.Adopts hydraulic transmission structure, improve the reliability of the transmission system.

5.Adopts full hydraulic steering, power shift, working device hydraulic control. The operation of portable flexible, smooth and reliable action.

6.Based on low voltage wide base off-road tires, driving axle swinging, good cross-country performance and through the performance.

7.To the excavation of lateral sliding device and the excavation scope is bigger, a wider range of application.

8.Adopted 360 damping suspension type rotating seats, with the armrest and seat belt, improves the comfort and safety of the driver.

9.Machine/diesel tank refueling location convenient and easy to observe the oil level.

The Main Performance Parameter of Backhoe Loader SH388

Overall Operating Weight 8200KG Final Reducer Single Stage Final Reducer
Transport Dimension Rated Loader of Axle 8/18.5t
L*W*Hmm 5920×2250×3770 Transmission System
Wheel base 2200mm Torque Converter
Min. Ground Clearance 300mm Model YJ280
Bucket Capacity 1.0m3 Type Single-stage Three Elements
Breakout Force 38KN Max. Efficiency 84.4%
Loading Lifting Capacity 2500KG Inlet Pressure 05Mpa
Bucket Dumping Height 2742mm Outlet Pressure 1.1Mpa1.3 Mpa
Bucket Dumping Distance 925mm Cooling Method Oil-cooling Pressure Circulation
Digging Depth 52mm Gearbox
Backhoe Capacity 0.3 m3 Type Fixed Shaft Power Transmission
Max. Digging Depth 4082/4500mm Oil Pressure of Clutch 1373Kpa1569 Kpa
Swing Angle of Excavator Grab 190o Gears Two Gears Ahead, Two Gears Astern
Max. Pulling Force 39KN Max.Speed 28Km/h
Engine Tyre
Model YC4A105Z-T20 Model 14-17.5/19.5L-24
Type In Line Direct injection Four-Stroke and Injection Combustion Chamber Pressure of Front wheel 0.55Mpa
Cylinder-Inside Diameter*Stroke 4-102×120 Pressure of Back Wheel 0.223Mpa
Rated Power 75KW Brake System
Rated Speed 2200r/min Service Brake Air Over Oil Caliper Brake
Min. Fuel Consumption 242g/km.h External Type
Max.Torque ≥410N.M Self-regulation
Displacement 4.4L Self-balance
Steering System Emergency Brake Operation Power Implementing brake
Model of Steering Device BZZ5-250 Manual Operation Power Terminating Brake
Steering Angle ±36 o Hydraulic System
Min. turning radius 6581mm Digging Power of Excavator Grab 46.5KN
Pressure of the system 12Mpa Digging Power of Dipper 31KN
Axle Bucket Lifting Time 68S
Manufacturer Feicheng Axle Factory Bucket Lowering Time 3.1S
Main Transmission Type Double Reduction Bucket Discharge Time 2.0S
The parameters are subject to change without notice
