SINOHENG SD7N bulldozer

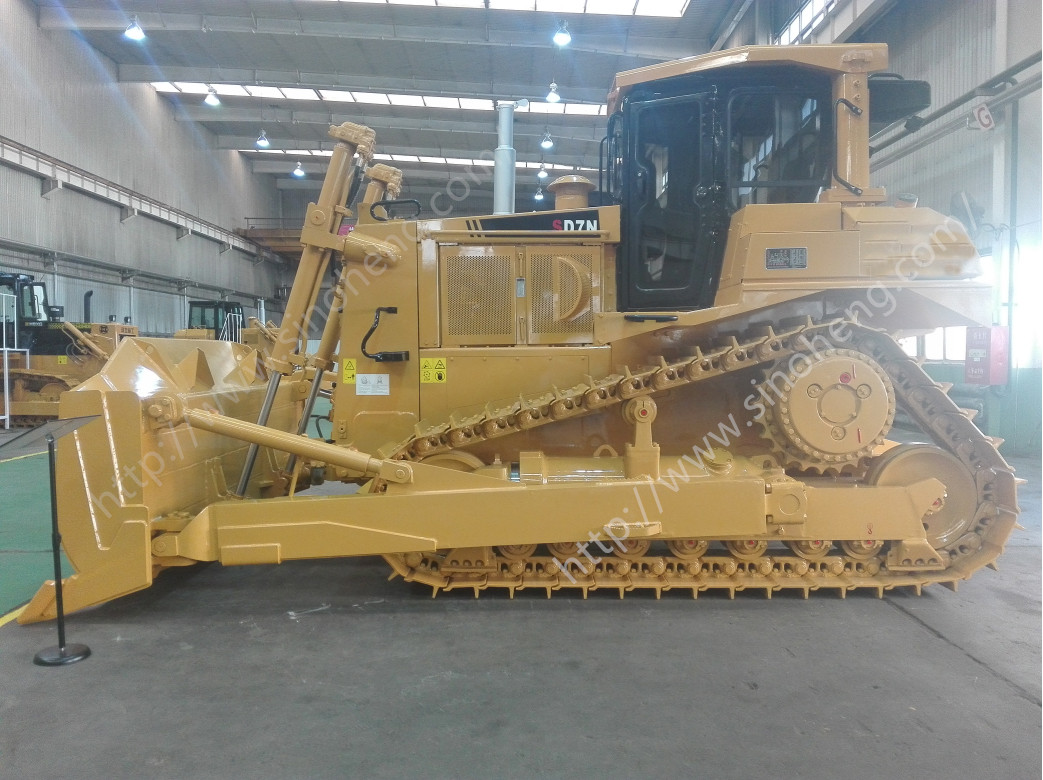

SD7N bulldozer is 230 horsepower track-type dozer with elevater sprocket,power shift drive,semi-rigid suspended and hydraulic controls.

SD7N-230 horsepower, elevated sprocket bulldozer integrate with modular designis easy to repair& maintenance,It relieves oil with difference pressure, the hydraulic system performs protecting environment and save energy with high working efficiency.Safety and comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.

It can be equipped with straight tilting blade,angle blade, coal pushing blade, U shape blade; single shank ripper, three shanks ripper; ROP,FOPS, forest defense canin etc. It is an ideal machine used in communication, desert, oil field, power,mining etc large earth moving program.



Dozer Tilt Undercarriage system
Operation weight(kg) 23800 Type The track is triangle shape
Ground pressure(kpa) 71.9   Thesprocket is elevated
Track gauge(mm) 1980

Number of track rollers(each side)

7

Min.groung clearance(mm)

404 Pitch(mm) 216
Gradient 30°/25° Width of shoe(mm) 560
Dozing capacity(m3) 8.4 Gear 1st 2nd 3nd
Blade width(mm) 35000 Forward km/h 0-3.9 0-6.5 0-10.9

Max. Digging depth(mm)

498 Backward km/h 0-4.8 0-8.2 0-13.2
Overall dimension(mm) Implement hydraulic system
Tilt(no loose dirt) 5677x3500x3402 Max.system pressure(Mpa) 20
  (Take scarifier) 7616x3500x3402 Pump type High perssure gears pump
Engine System output(L/min) 170
1.Type NT855-C280S10 Control type Plot control
Rated revolution(rpm) 2100
Rated power(KM) 185
Max.torque(N.m/rpm) 1097/1500

Rated fuel consumption(g/KM.h)

<=235

2.Type (May be choosed)

WD12
Driving system
Torque converter Torque conver is power separating hydraulic-mechanic type.
Transmission Planetary, power shift transmission with speeds forward and three speeds reverse.
Steering clutch The steering clutch is hydraulic pressed,non-constant engaged clutch.
Steering brake The blakeing clutch is hydraulic pressed by spring, separaed hydraulic ,constant meshed type.
Final drive The final drive is two-stage planetary reduction gear mechanism,splash lubrication.
