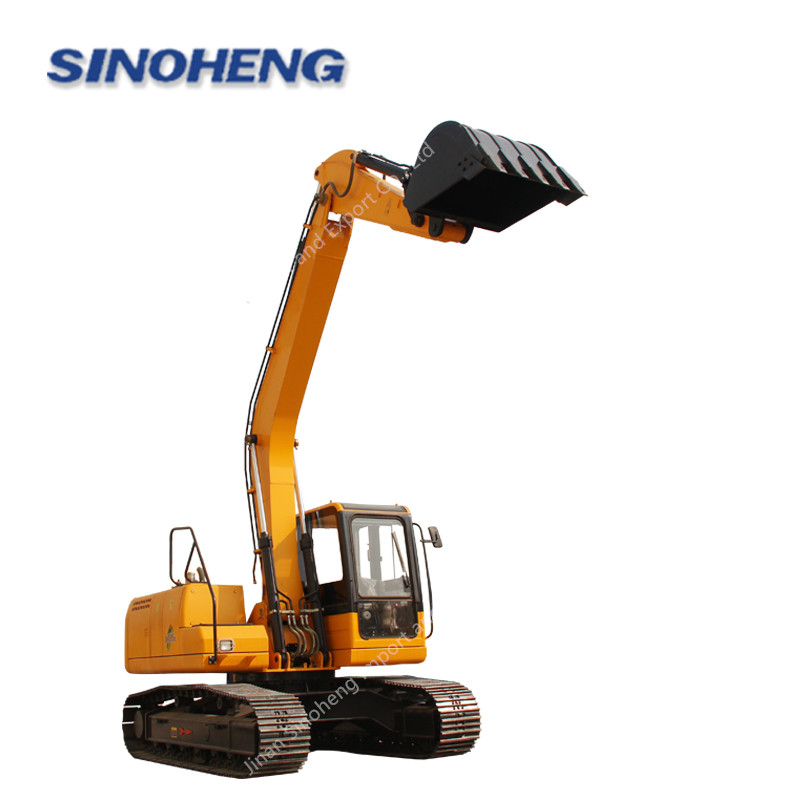

SH135 CRAWLER EXCAVATOR

SH135 CRAWLER EXCAVATOR

Short Description:

The crawler excavator is a compact excavator ,which matched china famous brand engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted international brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with broken pipeline system , adopted the hydraulic pilot servo operation system , the machine can changed track from rubber to steel and...


Product Detail

FAQ

Product Tags

The crawler excavator is a compact excavator ,which matched china famous brand engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted international brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with broken pipeline system , adopted the hydraulic pilot servo operation system , the machine can changed track from rubber to steel and cabin from open to closed.ensure it can work in different working environments and conditions.
Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.

ENGINE

Emission Standard

Tier 3/ Stage III

Make

Famous brand

Model

4D115Z-T20

Power /Rotation speed

85kw(116HP)@2200rpm

Number of cylinder

4

TRACK SYSTEM

Maximum Travel speed

3.8km/h

Width of track shoe

500mm

Number of track shoe per side

44pcs

Number of upper roller per side

2

Number of bottom roller per side

6

PERFORMANCE PARAMETER

Standard Bucket capacity

0.6m³

Swing speed

12rpm

Maximum Grade ability

30°

Maximum Bucket digging force

91KN

Maximum Arm digging force

55KN

Hydraulic system pressure

32Mpa

Machine weight

13500kg

Fuel tank

252L

Hydraulic oil tank

160L

MACHINE SIZE

Overall dimension (L*W*H)

7635mm*2500mm*2750mm

Height of cabin

2750mm

Track length on ground(Axle base)

2950mm

Track gauge

2000mm

Minimum Ground clearance

400mm

Swing radius at tail

2340mm

WORKING RANGE

Maximum Digging height

8540mm

Maximum Dumping height

6125mm

Maximum Digging depth

5095mm

Maximum Vertical digging depth

4650mm

Maximum Digging radius

8000mm

Minimum swing radius

2445mm









If you have more question about our product, Please write to me.Good quality, low price, Excellent service.Looking forward to your any inquiry!!
