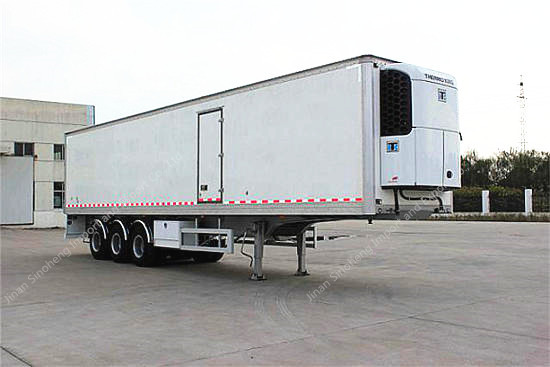

Refrigerator Semi-trailer 3 Axles 45ft
Semi trailer is 3 axles semi trailers, a kind of heavy traffic transportation tool by the traction pin connects with trailer head together . Semi trailers is mainly using for loading big volumen and not easy to disassemble, for example excavator etc engineering machinery. The cargo semi trailers including tipper semi trailers, stake semi trailers , flatbed semi trailers , container semi trailers etc , tanker semi trailers including oil tanker semi trailers , bulk cement semi trailers etc . All the kinds of semi trailers ( from light loading semi trailers to heavy loading semi trailers ) , we all can customize them according to customer’s special demands ( required dimensions , loading capacity etc ) .
| Refrigerator Semi-trailer 3 Axles 45ft | |
| Brand | |
| Type | 45 FT 3 axles refrigerator semi-trailer |
| CHASSIS | |
| Curb Weight | 8 tons |
| Outer side dimension(mm) | 12500mm*2500mm*1600mm |
| Loading Capacity (Ton) | 40 ton |
| AXLES | FUWA BRAND 13 T /PER , 3 AXLES |
| Tire | 11.00R20,12pieces |
| Suspension | Mechanical spring suspension |
| Spring leaf | 10 pieces or intensify |
| King pin | 50/90mm |
| Support leg | 28T |
| Main beam | Height: 500mm, upper plate is 16mm, middle plate is 8mm, down plate is 16mm side beam is 16# |
| Platform | 4mm steel platform |
| Side wall | Height:600mm, Thickness:1.5mm |
| Brake chamber | 2 line pneumatic chambers,WABCO brand brake system |
| Light | brake light,back and side light,Reflector and marking at side and rear |
| Voltage | 24V electric system |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m*0.5m*0.5m |
| Spare wheel carrier | 2 pieces |
| REFRIGOR BODY | |
| Cooling machine brand | USA THEREMO |
| Model | SLXE400 |
| Cooling machine descriptions | ARI standard,environment temperature 37.8°C,ETV |
| Temperature | 2°C—— -18°C |
| Engine model | TK486V,23.5kw |
| Compressor machine | X430CS,492ml displacement |
| Cryogen | R-404A,5kg |
| Body inside capacity | 73m³ |
| Body descriptions | Floor and top thickness:105mm，side:83mm |
| Doors | Rear :double doors,side:simple single door |
| Others | 40 mm aluminum railway on floor |
If you have more question about our product, Please write to me.Good quality, low price, Excellent service.Looking forward to your any inquiry!!
Q:How to transport the truck?
A:We mainly transport it by ro-ro ship or bulk ship.
Q:I want to transport the truck by container, is it ok?
A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:What is the payment term?
A:Now the payment term we can accept is by T/T or L/C.
Q:Can you provide after-sale service?
A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
