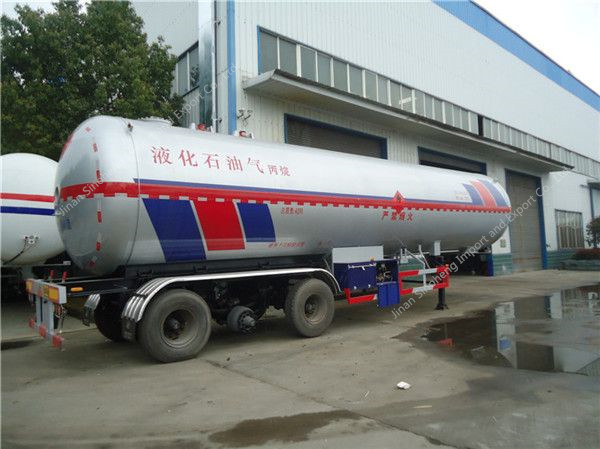

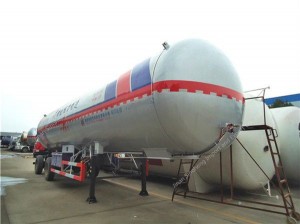

56000 Liters LPG Tank Semi Trailer

56000 Liters LPG Tank Semi Trailer

Short Description:

Semi trailer is 3 axles semi trailers, a kind of heavy traffic transportation tool by the traction pin connects with trailer head together . Semi trailers is mainly using for loading big volumen and not easy to disassemble, for example excavator etc engineering machinery. The cargo semi trailers including tipper semi trailers, stake semi trailers , flatbed semi trailers , container semi trailers etc , tanker semi trailers including oil tanker semi trailers , bulk cement semi trailers etc . Al...


Product Detail

FAQ

Product Tags

Semi trailer is 3 axles semi trailers, a kind of heavy traffic transportation tool by the traction pin connects with trailer head together . Semi trailers is mainly using for loading big volumen and not easy to disassemble, for example excavator etc engineering machinery. The cargo semi trailers including tipper semi trailers, stake semi trailers , flatbed semi trailers , container semi trailers etc , tanker semi trailers including oil tanker semi trailers , bulk cement semi trailers etc . All the kinds of semi trailers ( from light loading semi trailers to heavy loading semi trailers ) , we all can customize them according to customer’s special demands ( required dimensions , loading capacity etc  ) .

Item    Unit Parameters
Product   name    LPG   Tank Semi-trailerCLW9390GYQ
Fact   Volume  M3 56
Loading   capacity kg 23520
 GVW    39000
Mass in   working order 15480
Overall dimensions mm 12700×2500×3975
Number of axles 3
Wheel base 6865+1310+1310
Track base Front    -
Rear    1840
F/R   overhang  mm -/1450
Tire specification   12R22.5   12PR
Special   configuration  Tank   material  Q370R
Standard   configuration  12   tons BPW axle, Single fluid, double side loading and   unloading, double valve box, double toolbox, relief valve, thermometer,   pressure gauge, emergency shut-off valve, JOST leg, JOST drawing pin, fire   bottle, static adhesive tape, plastic fender.
Others    Filling   medium: LPG; Design pressure 1.77 Mpa, the design temperature of 50 , filling ratio: 0.42 t/m3, corrosion allowance: 1 mm; The shape of   tank size: 12340×2473 mm
Manufacturing   standards  GB150   “pressure vessel” and “the transportable pressure vessel safety   technology supervision regulation”.

If you have more question about our product, Please write to me.Good quality, low price, Excellent service.Looking forward to your any inquiry!!


  • Previous:
  • Next:

  • Q:How to transport the truck?
    A:We mainly transport it by ro-ro ship or bulk ship.
    Q:I want to transport the truck by container, is it ok?
    A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
    Q:How about your product quality?
    A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.

    Q:What is the payment term?

    A:Now the payment term we can accept is by T/T or L/C.

    Q:Can you provide after-sale service?

    A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
