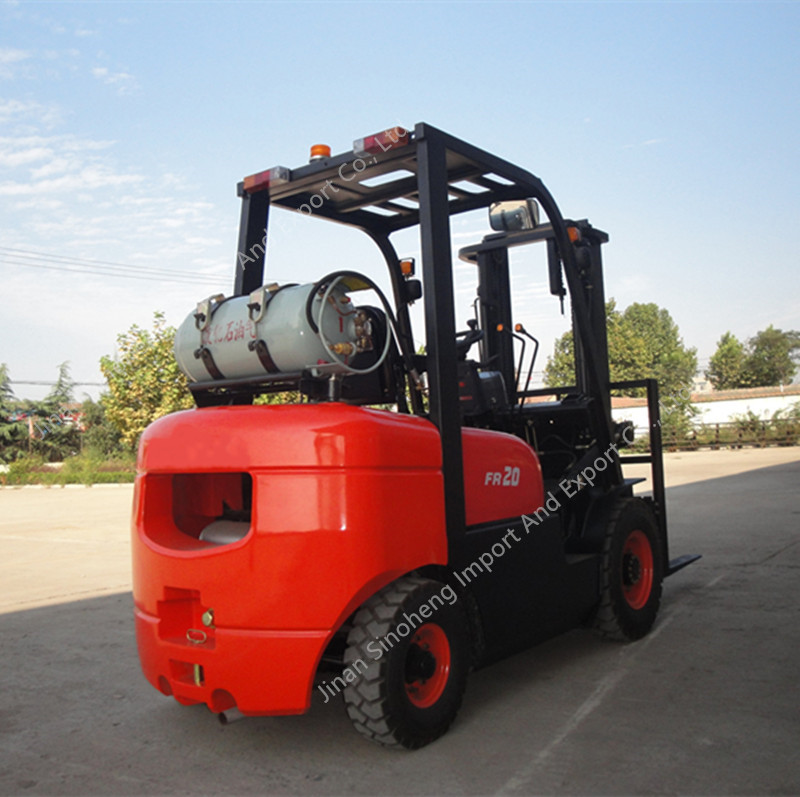

3.5 tons PG/Gasoline Forklift Truck
3.5Tons PG/Gasoline Forklift Truck
Main Features :
- Max. Lifting capacity : 3500kg 3.5 Ton
- Max. Lifting height : 3000mm
- Power Type : Diesel
- With CE cetificate
- Good Quality and high working efficient
|Product Name||3.5 tons Gasoline/LPG Forklift Truck|
|Load capacity (kg)||3500|
|Load center (mm)||500|
|Max. lifting speeds ( with load ) mm/s||375|
|Max. driving speeds ( with/without load ) km/h||7/19|
|Max. towing ( with/without load ) kn||16/11|
|Gradeability (with/without load ) %||15/20|
|Lifting height (mm)||3000|
|Free lift (mm)||80|
|Tilting angles ( forward-backward ) ( .)||6/12|
|Min. turning radius (mm)||2500|
|Min. right angle aisel width ( mm )||2110|
|Min. under-clearance (mm)||135|
|Overall length (including fork)mm||3800|
|Overall width ( mm )||1230|
|Overall height (mast lowered )mm||2110|
|Overall height (mast extend )mm||4270|
|Overall height to overhead guard (mm)||2110|
|Fork overhang (mm)||465|
|Wheel base (mm)||1750|
|Tread||Front tread (mm)||1000|
|Rear tread (mm)||970|
|Total weight (kg)||4580|
|Fork width (mm)||125|
|Fork thickness (mm)||50|
|Backrest height (mm)||1225|
|Fork length (mm)||1220|
|Engine||Engine model||K25/Chinese GQ4Y/Chinese BY491GP|
|Rate power (KW)||37.4/41/41|
|Type of power shift||Tor-non|
Q:How to transport the truck?
A:We mainly transport it by ro-ro ship or bulk ship.
Q:I want to transport the truck by container, is it ok?
A:Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:What is the payment term?
A:Now the payment term we can accept is by T/T or L/C.
Q:Can you provide after-sale service?
A:Yes,of course,no matter it’s truck,construction machinery or spare parts,once we sell that to customers,we can provide after-sale service for customers,it means that if our products have related problems,just contact with us,we will try to solve that for customers and give the customers satisfied reply,since we are looking forward to long-term stable cooperation with customers.
