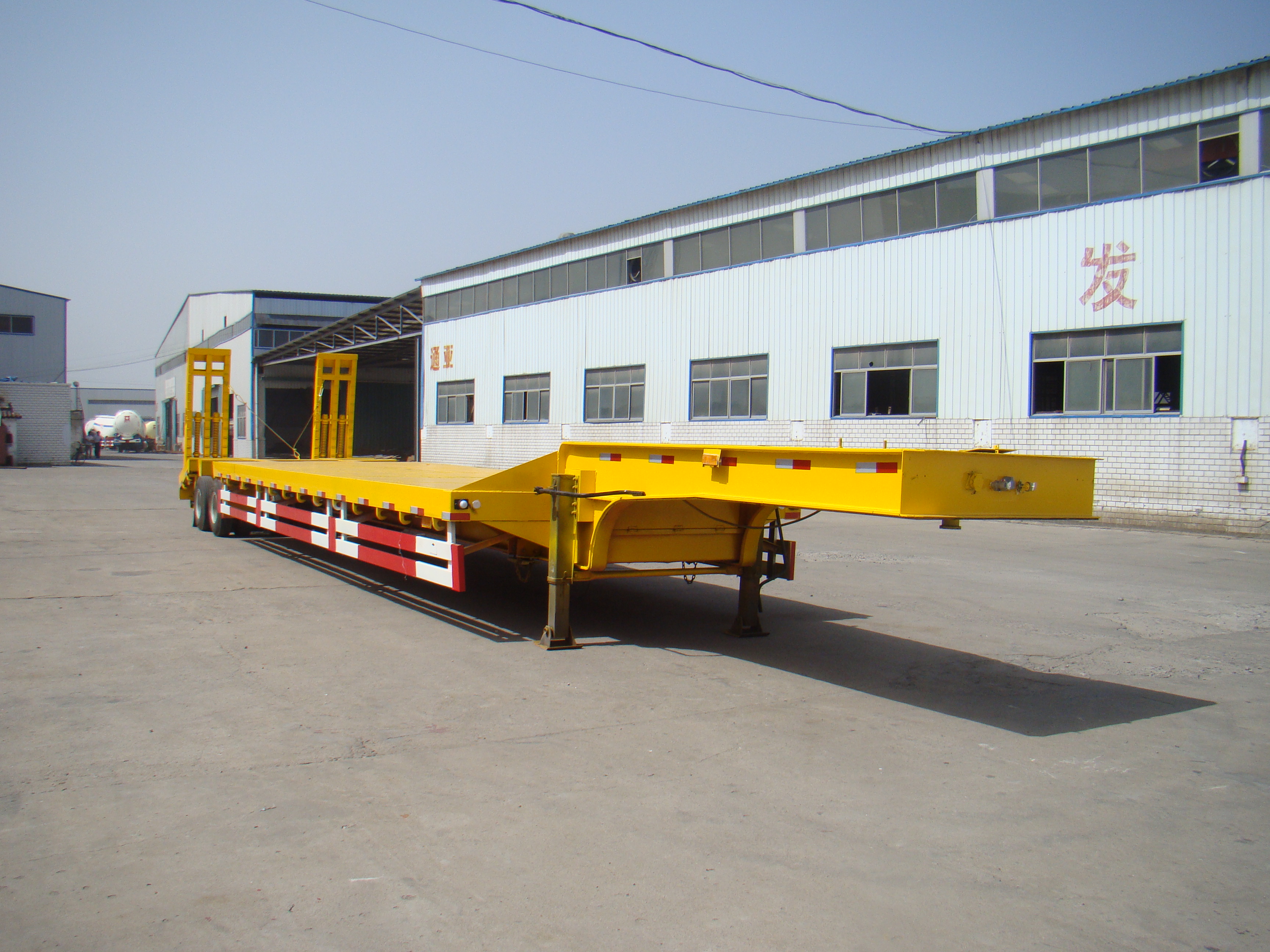

15m New 3 Axle Low flatbed Semi Trailer with pillar
Semi trailer is 3 axles semi trailers, a kind of heavy traffic transportation tool by the traction pin connects with trailer head together . Semi trailers is mainly using for loading big volumen and not easy to disassemble, for example excavator etc engineering machinery. The cargo semi trailers including tipper semi trailers, stake semi trailers , flatbed semi trailers , container semi trailers etc , tanker semi trailers including oil tanker semi trailers , bulk cement semi trailers etc . All the kinds of semi trailers ( from light loading semi trailers to heavy loading semi trailers ) , we all can customize them according to customer’s special demands ( required dimensions , loading capacity etc ) .
|
TECHNICAL SPECIFICATION of 15M 3 Axle Flatbed Trailer |
|
|
All dimension and components should comply with the standard specified by the Standardization & Metrology Organanization for GCC (GSMO) and Saudi Arabian Standard Organization (SASO) |
|
|
Descriptions |
Technical Specifications |
|
Deck L*W*H(mm) |
15000*2520*1500 |
|
Front wall Height (mm) |
1520 |
|
Payload Capacity (kg) |
30,000 (Approximately) |
|
Gross Vehicle Weight (kg) |
40,000 (Maximum) |
|
Chassis frame
|
Welded IPE 480 main Beam ,140mm width,the top flange 14mm bottom flange 16mm web 6mm thickness,side,front and rear beam is UPN 160*65mm,Cross member is IPE80*46mm.Main steel material Q345,The main beam,side beam split joint is not allow .
|
|
|
All structure, chassis and suspension should be guaranteed for five (1) years against cracked.
|
|
Axle and Suspension |
Heavy duty BPW brand made in China. |
|
|
3 X 12T – Air suspension |
|
|
Every air bellow shall be provided with emergency shut-off valve to manually close the air supply of individual bellow in case of leak |
|
|
90 mm air bellows shoe should be installed on all air bellows. |
|
|
Front axle shall have lifting device，BPW brand,made in China |
|
|
Each axle shall have 2 shock absorbers |
|
|
To be fitted with hub-odometer，the second axle,right side |
|
|
Drum brake |
|
Brakes System |
Air brake, dual circuit |
|
|
Linkage-free parking brakes |
|
|
Main brake valves and ABS are WABCO brand,Gladhand valve,Connector,hose and accessories are Chinese brand |
|
|
The brake system shall have ABS control (Two axles2&3, indicating lights and fault indicator must be provided.) |
|
|
All brake lines shall be protected with high quality insulation hoses and attached to the chassis with insulated metallic clamp |
|
|
Heavy duty air pressure gauges should be installed near (Service) palm coupling |
|
|
Every union fitting shall be applied with loctite to ensure connection and prevent air leaks. |
|
Electrical System |
24 Vdc |
|
Cables & Harnesses
|
Electrical cable wirings shall be appropriately harnessed and protected with an appropriate size of protective insulation. |
|
|
Cable harness shall be properly laid out and held with appropriate sizes of insulated metallic clamps |
|
Trailer Exterior Lighting (Sizes & colors of exterior light shall conform with SASO and international standards) |
Side marker lights – Total of 14 side marker lights, 7 on each side of the trailer, symmetrically placed to cover the total length of the trailer
|
|
|
Taillight clusters – Two sets on each side of the trailer’s rear end. Each cluster includes; reflector red in color and the dimensions shall be 10cm x 12 cm) parking light, brake light, direction light, & reverse light and horn. 。 |
|
|
Rear plate lights – 2 pieces |
|
Trailer Electric Coupling Connector
|
all weather 7-pin connector, with flexible spiral conduit or multicore cableinsulation
|
|
King pin |
2″ Jost King pin mounted to the front reinforced subframe .
|
|
Support legs (Landing gear)
|
JOST brand， heavy duty telescopic type dual speed support legs. Suitable bracing with crank mechanism should be added to support the landing gear JOST |
|
Suspension ride height on 5th wheel (mm)
|
The mounting of top plate for each air bellow shall be measured in such a way that the floor height shall be level. Taking into consideration that the fifth wheel height is 1,400 mm |
|
Tires and Rims
|
Single tire Super 385/65R (11.75×22.5) steel disc rims. (6+1) Michellin brand tires 单台：385/65R22.5， |
|
Flooring |
Steel Checkered 3mm plate 3MM |
|
|
The trailer shall be designed to carry 1× 40-ft loaded container,1× 20ft loaded container ,and 2×20ft empty containers .
|
|
|
Each side shall have removable pillars with locks (60x80x4x1500mm) 10 pieces on each side (60x80x4x1500mm) |
|
|
10 pieces of hooks or ratchets for cargo belts shall also be provided on each side.
|
|
Trailer Front Wall
|
The carrier shall be infront of the trailer wall,the pillars shall be back of trailer wall.the carrier shall be equipped with step ladders on both sides. |
|
|
The front wall shall be 1520mm high and shall be provided with appropriate carrier for trailer accessories |
|
Side Pillars Carrier
|
Suitable carrier or tray with lockable door cover for keeping the removable side pillars shall be provided on the side of the trailer to storing the removable side pillars. |
|
Cargo Restraint
|
Twenty (20) pieces removable side pillars and Two (2) pieces ratchet type cargo belts (2,000 kg x 10,000 mm). Two (2) pices cargo chain which come along with type 3 tons. |
|
Paints and Anti-corrosion
|
All beams,plates and structural frames shall be cleaned by sand blasting then treated with anti-rust primer before anti-corrosion paint or body coat will be applied.The trailer shall be guaranteed for five (5) years against corrosion. |
|
Standard Accessories |
Reinforced rear bumper with rubber dumper |
|
|
Two (2) six (6)kg. ABC type fire extinguisher with holder |
|
|
Spare tire carrier for 2 tires |
|
|
Driver tool box，Kitchen box and food box( food box provide by customer by themselves) |
|
|
Two (2) pieces tire chokes. |
|
|
Steel mudguard and tail lights grill |
|
|
Plastic water tank with faucet-200 liters |
|
Warranty Provisions |
Suspensions and chassis structures must be free from fissure and deformity for one year beginning form the receiving date of the trailer |
|
Shipment of Trailers
|
Schedule of Deliveries (The earliest delivery time that would be favorable to SAPTCO shall be given high consideration.) |
|
|
Quantity of trailers to be delivered per delivery schedule ( To be specified ) |
